Mold Making

Tooling Capability

Rapid Tooling and Production Tooling for Product Development and Manufacturing

UTTMould helps buyers choose the right tooling path based on product stage, resin, expected volume, budget, tool life and delivery schedule. A project may need a faster tool for sample validation, or a stronger production tool for repeatable long-term manufacturing.

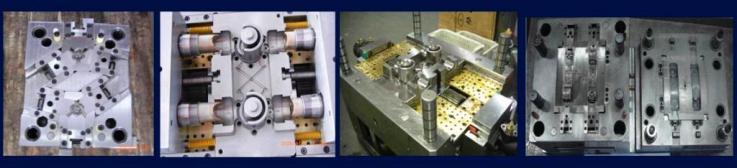

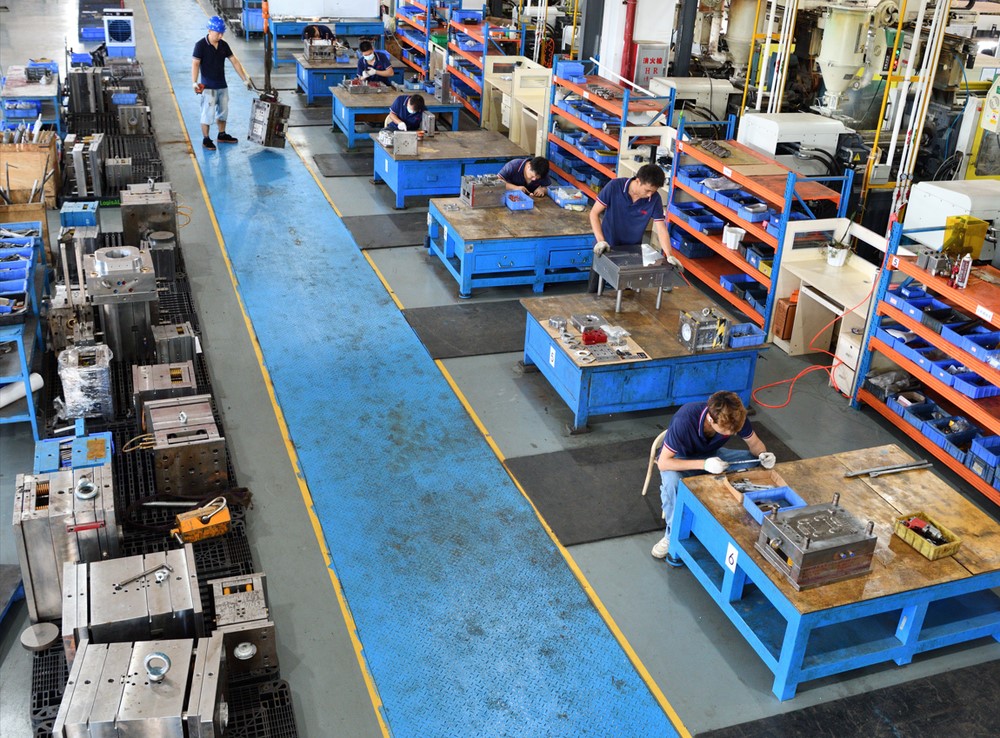

Our tooling workshop supports small precision molds, medium automotive molds, multi-cavity molds, overmolds, hot runner molds, gas-assisted molds, unscrewing molds, stack molds and two-shot molds. Each recommendation is tied to the part design, molding risk and approval plan.

Send CAD files, target volume and project stage to request a tooling quote.

CNC machined mold insert for rapid tooling and plastic injection tooling

Tooling Capability Overview

Capability	Details
Core services	Fast validation tools, prototype tools, production tools, export molds and tool modification
Applications	Sample validation, pilot runs, low-volume production, bridge production and repeatable manufacturing
Mold types	Multi-cavity molds, hot runner molds, overmolds, two-shot molds, stack molds, unscrewing molds and gas-assisted molds
Industries	Automotive, electronics, medical devices, consumer products, appliances and industrial plastic parts
Engineering support	DFM review, mold design, material guidance, trial runs, dimensional inspection and tooling adjustment
Production path	From sample validation to approved production tooling and molded-part delivery

Rapid Tooling vs Production Tooling

Factor	Rapid Tooling	Production Tooling
Best use	Design validation, samples, pilot runs and low-volume molding	Stable products, high-volume molding and long-term production
Lead time	Usually faster	Usually longer because of higher durability and production requirements
Initial cost	Usually lower	Usually higher
Design flexibility	Easier to adjust after trial feedback	Changes are more expensive after approval
Tool life	Shorter to medium tool life depending on project needs	Built for higher cycles and repeatable mass production

Our Tooling Process

Project review: We review 3D CAD files, drawings, material, quantity, finish and application requirements.
DFM analysis: We check draft, wall thickness, ribs, bosses, gate position, parting line, ejection and mold structure.
Tooling plan: We recommend a validation tool or production tool based on product stage, volume, risk and budget.
Mold manufacturing: Components are machined, finished, assembled and checked by experienced technicians.
Trial run: Trial parts are molded, measured and reviewed before adjustment or approval.
Production support: The validated tool can support pilot orders, bridge production or larger manufacturing programs.

When Buyers Should Choose Rapid Tooling

The product design still needs functional testing with real molded parts.
The buyer needs a small batch before investing in a long-life tool.
The project needs faster samples for market testing, investor review or assembly validation.
The team wants to reduce tooling risk before committing to a larger manufacturing program.

When Buyers Should Choose Production Tooling

The product design is stable and ready for repeated production.
The project requires higher tool life, consistent part quality and long-term mold maintenance.
The buyer needs reliable cycle time, dimensional stability and process control for larger volumes.

Rapid Tooling Project Review: Changes and Acceptance

Rapid tooling concerns the mold used to validate or manufacture parts. Confirm the required sample function, planned quantities and production path before choosing the tool specification; the fastest initial tool is not automatically the best fit for repeat orders.

Design Changes to Resolve Before Tooling

Confirm the CAD revision and identify dimensions or assembly features that may still change.
Review how resin, wall thickness, undercuts and surface finish affect the proposed mold.
Agree how a later design change would affect inserts, rework, cost and the revised schedule.

Agree on Tool and Sample Acceptance

Define the trial quantity, material grade, dimensional checks, appearance criteria and correction process. For an export mold, also confirm the receiving machine requirements and agreed handover documents. For repeat orders, review the intended tool life and maintenance plan.

Need molded parts rather than a mold alone? See rapid injection molding for samples and small batches. Send drawings, expected quantities, possible design changes and acceptance requirements for a rapid tooling project review.

Related Services

Precision injection mold tooling for pilot runs and production molding

Rapid Tooling and Production Tooling FAQ

When should a buyer choose rapid tooling instead of production tooling?

Rapid tooling is useful for design validation, molded samples, pilot runs and bridge production. Production tooling is better when the design is stable and higher-volume repeat production is required.

Can rapid tooling support real injection molded parts?

Yes. Rapid tooling can produce real molded parts for fit, function, assembly and market testing when the tooling plan matches the material and part requirements.

What mold life can rapid tooling and production tooling support?

Tool life varies by tool steel, part geometry, resin, surface requirements and maintenance. UTTMould recommends the tooling route based on expected volume and project risk.

What information is needed for a tooling quote?

Please provide 3D CAD files, 2D drawings if available, plastic material, target quantity, expected annual volume, surface finish, tolerance needs and project schedule.

Can UTTMould move from rapid tooling to production tooling?

Yes. A project can start with rapid tooling for validation and later move to stronger production tooling after the design, demand and quality requirements are confirmed.
