Outstanding designs are the foundation of outstanding products, especially when you are thinking about mass production. Successfully completing the design step is essential if you want your product to be produced more quickly, at a lower cost, and with consistent quality. Additionally, when working with injection molding in China, smart design decisions may make the difference between expensive setbacks and flawless manufacturing.
We'll analyze five crucial design techniques in this blog to maximize your molds, avoid mistakes, and cut costs. Continue reading to find out how it may improve the effectiveness, longevity, and affordability of your next product.
Despite their striking appearance, complex geometries create issues while shaping. Complex parting lines, numerous molds, or additional equipment are sometimes needed for intricate designs, which raises costs and increases the possibility of production errors. Faster cycle times and improved manufacturability are two benefits of a basic, clean design. Reduce superfluous features, keep walls consistent, and avoid sharp interior angles that might cause stress points or defects.
One of the most important requirements for a successful injection-molded product is consistent wall thickness. Variations may result in internal tensions, sink marks, and bending due to uneven cooling. To guarantee balanced shrinkage and a smooth flow of the molten plastic, try to achieve uniform thickness throughout your part. If a modification is required, make the change gradually rather than all at once. This little design element can greatly improve mold longevity and component quality.
To make it easier for pieces to come out of the mold, draft angles are small tapers added to vertical walls. Without them, components may stick, harming the mold and the final product. Although the ideal draft angle varies based on the material and mold finish, it is generally advised to have at least 1° on each side. A well-designed draft minimizes friction, speeds up cycle times, and prolongs the life of the mold—all of which are crucial for large-scale production.

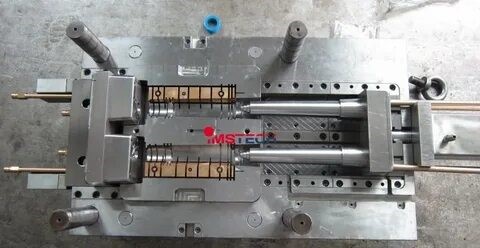

Undercuts are characteristics that necessitate intricate side actions or collapsible cores because they stop a part from being expelled directly from the mold. These extra mechanisms increase the cost of tools and maintenance requirements. It's ideal to do away with undercuts if your design can work without them (for instance, by employing split features or snap fits). You can modify challenging areas without compromising product functionality by working with a skilled mold designer.
Injection molding is a highly efficient manufacturing process that creates consistent, high-volume plastic parts. Early consideration of geometry, wall thickness, draft, and undercuts can help you save time, money, and frustration when designing an injection mold in China. Because of its precision, speed, and scalability, injection molding is used extensively in many sectors. Additionally, integrating this with 3D printing in China can assist those in the early phases of development in refining and testing their designs before mass manufacturing.
Which draft angle is best for injection-molded parts?
For the majority of materials, a minimum of 1° on each side is advised.
Can I design an injection mold with sharp corners?
Steer clear of sharp interior corners and utilize fillets to avoid warping and stress.
Why is consistent wall thickness crucial?
By ensuring uniform cooling it reduces flaws like sink marks and warping.
In injection molding, are undercuts always a bad thing?
Not always, but they increase the cost and complexity, so avoid them whenever you can.
Is it possible to combine 3D printing with injection molding for prototyping?
Yes, prototypes are frequently made using 3D printing in China prior to molding.
How does conformal cooling improve cycle time?
Cooling channels that match cavity shapes reduce cycle time and improve part consistency .
